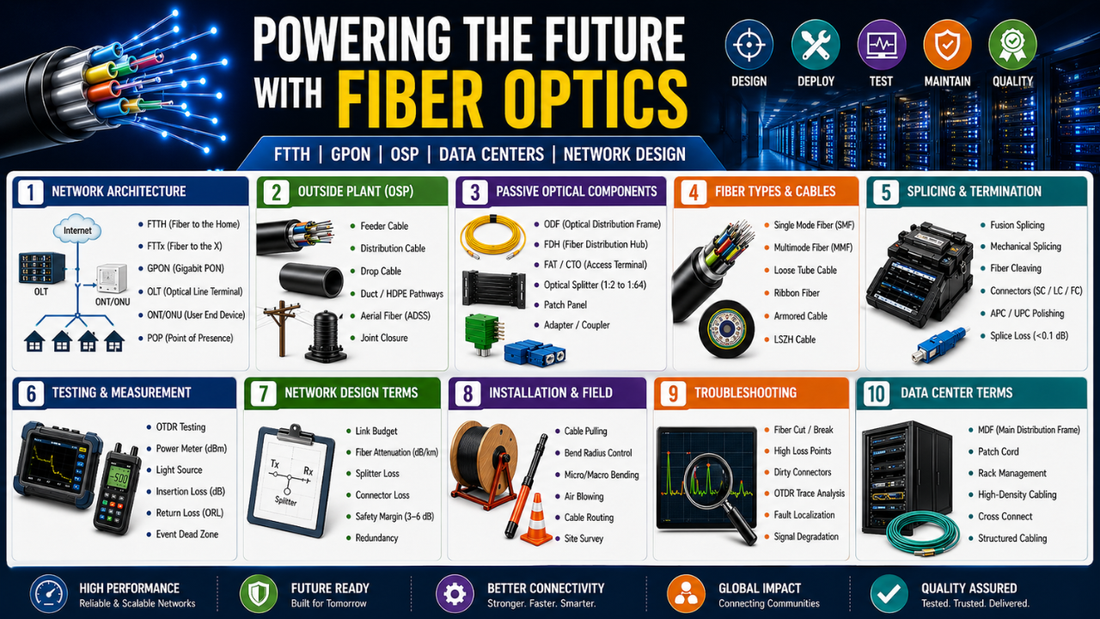

Detailed Guide to Fiber Optics Components, Types & Technologies

1. Network Architecture (FTTH, GPON, FTTx)

Fiber network architecture defines how data flows from the service provider to the end user.

• FTTH (Fiber to the Home): Direct fiber connection from central office to individual homes, offering high-speed broadband with minimal latency.
• FTTx (Fiber to the X): General term covering FTTH, FTTB (building), FTTC (curb), depending on how close fiber reaches the user.
• GPON (Gigabit Passive Optical Network): Uses passive splitters to serve multiple users from a single fiber, reducing infrastructure cost.
• OLT (Optical Line Terminal): Located at the service provider’s central office, it manages data transmission to multiple ONTs.
• ONT/ONU: Installed at the customer premises, converts optical signals into electrical signals for devices.
• POP (Point of Presence): A centralized hub where ISPs connect to deliver services.

2. Outside Plant (OSP) Infrastructure

OSP includes all external physical infrastructure used in fiber deployment.

• Feeder Cable: Connects central office to distribution points; usually high fiber count.
• Distribution Cable: Carries fiber from feeder to local areas or cabinets.
• Drop Cable: Final connection from distribution point to end user.
• Duct / HDPE Pipes: Underground pathways protecting fiber cables.
• Aerial Fiber (ADSS): Installed on poles, ideal for areas where underground deployment is difficult.
• Joint Closure: Sealed enclosure that protects spliced fiber joints from environmental damage.

3. Passive Optical Components

These components manage optical signals without requiring power.

• ODF (Optical Distribution Frame): Central rack for organizing and terminating fiber cables.
• FDH (Fiber Distribution Hub): Distributes fiber connections to multiple endpoints.
• FAT / CTO: Access terminal used in FTTH networks for connecting subscribers.
• Optical Splitter: Divides one optical signal into multiple outputs (e.g., 1:32, 1:64).
• Patch Panel: Allows easy connection and management of fiber links.
• Adapters/Couplers: Join two fiber connectors for signal continuity.

4. Fiber Types & Cable Designs

Different fiber types serve different applications:

• Single Mode Fiber (SMF):
  • Core size: ~9 microns
  • Long-distance communication (up to 100+ km)
  • Used in telecom and backbone networks
• Multimode Fiber (MMF):
  • Core size: 50–62.5 microns
  • Short-distance communication
  • Common in LANs and data centers
• Loose Tube Cable: Fibers are loosely placed in tubes for outdoor use and environmental protection.
• Ribbon Fiber: Multiple fibers arranged in flat ribbons for high-density applications.
• Armored Cable: Includes protective layers for harsh conditions (rodents, mechanical damage).
• LSZH Cable: Low Smoke Zero Halogen, ideal for indoor environments due to safety.

5. Splicing & Termination

Joining fiber cables with minimal signal loss is critical.

• Fusion Splicing: Uses heat to permanently join fibers with very low loss (~0.05 dB).
• Mechanical Splicing: Temporary or quick solution using alignment fixtures.
• Fiber Cleaving: Precise cutting of fiber ends for proper alignment.
• Connectors (SC, LC, FC): Interface points for connecting fiber cables.
• APC vs UPC Polishing:
  • APC: Angled, lower reflection
  • UPC: Flat, general use
• Splice Loss: Ideally kept below 0.1 dB for optimal performance.

6. Testing & Measurement Tools

Ensures fiber network performance and fault detection.

• OTDR: Detects faults, breaks, and loss along the fiber length.
• Power Meter: Measures signal strength in dBm.
• Light Source: Sends signal for testing continuity.
• Insertion Loss: Total signal loss between two points.
• Return Loss (ORL): Reflected signal loss, important for signal quality.
• Event Dead Zone: Distance where OTDR cannot detect events after reflection.

7. Network Design Concepts

Proper planning ensures efficiency and scalability.

• Link Budget: Total allowable signal loss from transmitter to receiver.
• Fiber Attenuation: Signal loss per km (typically 0.2–0.4 dB/km).
• Splitter Loss: Loss introduced when dividing signals.
• Connector Loss: Small losses at connection points.
• Safety Margin: Extra buffer (3–6 dB) for reliability.
• Redundancy: Backup paths to ensure network uptime.

8. Installation & Field Practices

Correct installation prevents long-term issues.

• Cable Pulling: Must follow tension limits to avoid damage.
• Bend Radius: Minimum bending limit to prevent signal loss.
• Micro/Macro Bending: Small or large bends causing attenuation.
• Air Blowing: Method for installing fiber through ducts.
• Cable Routing: Proper path planning to avoid interference.
• Site Survey: Pre-installation analysis of terrain and requirements.

9. Troubleshooting Fiber Networks

Identifying and resolving issues quickly is critical.

• Fiber Cuts: Physical damage leading to signal loss.
• High Loss Points: Caused by poor splicing or bending.
• Dirty Connectors: One of the most common issues.
• OTDR Analysis: Helps pinpoint exact fault locations.
• Fault Localization: Identifying distance to problem area.
• Signal Degradation: Gradual performance drop due to aging or damage.

10. Data Center Fiber Systems

Fiber is essential for high-speed data center operations.

• MDF (Main Distribution Frame): Central point for network connections.
• Patch Cords: Connect equipment within racks.
• Rack Management: Organizing cables for efficiency.
• High-Density Cabling: Supports large-scale data transmission.
• Cross Connect: Flexible interconnection system.
• Structured Cabling: Standardized approach for scalability.

Final Insight

Fiber optics is not just about cables—it’s a complete ecosystem involving design, deployment, testing, and maintenance. Mastering these elements ensures high-performance, future-ready networks
