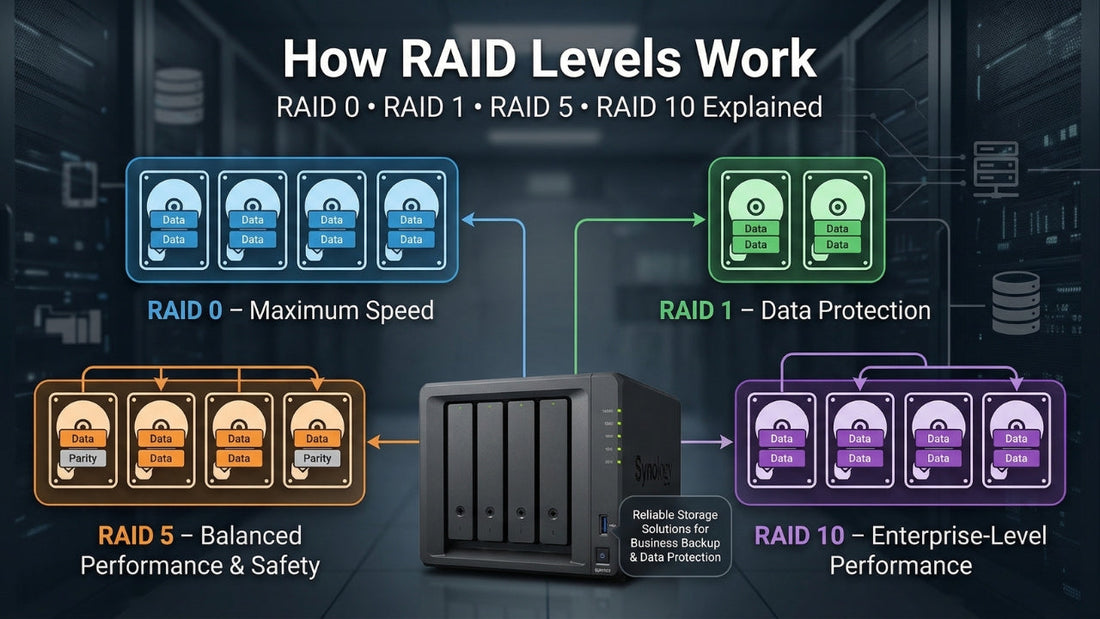

How RAID Levels Work: RAID 0, 1, 5, 10 Explained – Complete Guide to RAID Storage for Business & NAS

In the modern digital ecosystem, data is one of the most valuable business assets. From financial records and customer databases to surveillance footage and enterprise applications, organizations depend on secure, high-performance, and reliable storage systems.

This is where RAID (Redundant Array of Independent Disks) plays a crucial role.

RAID is widely used in NAS (Network Attached Storage), servers, and enterprise IT environments to deliver a combination of:

• High speed

• Data redundancy

• Fault tolerance

• Scalable storage

This comprehensive guide explains RAID 0, RAID 1, RAID 5, and RAID 10 in depth, helping businesses choose the right configuration based on performance, protection, and budget.

🔍 What is RAID? (Deep Technical Explanation)

RAID is a method of combining multiple physical disks into a single logical storage unit. It distributes data across drives using different techniques such as:

Core RAID Mechanisms:

• Striping → Splitting data across multiple disks for speed

• Mirroring → Duplicating data for redundancy

• Parity → Storing calculated data for error recovery

Key RAID Objectives:

• Improve read/write speeds

• Ensure data availability during disk failure

• Provide fault tolerance

• Optimize storage utilization

⚙️ RAID Architecture Concepts (Important for Business Decision Makers)

1. Striping (Performance Optimization)

• Data is broken into blocks

• Blocks are written across multiple disks simultaneously

• Improves throughput and reduces latency

2. Mirroring (Redundancy)

• Exact copy of data stored on multiple drives

• Provides real-time backup

• Enables instant recovery

3. Parity (Error Correction)

• Mathematical algorithm used to reconstruct lost data

• Distributed across disks (RAID 5)

• Reduces storage overhead compared to mirroring

🚀 RAID 0 – Maximum Performance (Striping Only)

🔹 Working Principle:

• Data is split evenly across all disks

• No redundancy or backup

• Parallel processing of data

🔹 Technical Characteristics:

• Block-level striping

• No parity

• No fault tolerance

• Linear scalability in speed

✅ Advantages:

• Highest possible read/write speed

• 100% storage utilization

• Ideal for performance-intensive workloads

• Low cost per GB

❌ Disadvantages:

• Zero data protection

• Single disk failure = total data loss

• Not suitable for critical environments

💼 Business Use Cases:

• Video editing and rendering workstations

• Temporary cache storage

• High-speed computing environments

• Non-critical testing environments

🔒 RAID 1 – Data Redundancy (Mirroring)

🔹 Working Principle:

• Data is written identically to two or more disks

• Each disk contains a full copy

🔹 Technical Characteristics:

• Block-level mirroring

• Instant failover capability

• High availability

✅ Advantages:

• Complete data redundancy

• Quick recovery from disk failure

• High read performance

• Simple implementation

❌ Disadvantages:

• 50% storage efficiency

• Higher hardware cost

• Limited write performance improvement

💼 Business Use Cases:

• Financial systems

• HR and payroll data

• Small business servers

• Critical document storage

⚖️ RAID 5 – Balanced Performance & Data Protection

🔹 Working Principle:

• Data and parity distributed across all disks

• Requires minimum 3 drives

🔹 Technical Characteristics:

• Block-level striping with distributed parity

• Single disk fault tolerance

• Efficient storage utilization

✅ Advantages:

• Good balance of speed and redundancy

• Better storage efficiency than RAID 1

• Fault tolerance (1 disk failure allowed)

• Cost-effective for businesses

❌ Disadvantages:

• Slower write performance due to parity calculation

• Rebuild time can be long (risk during rebuild)

• Performance degradation during failure

💼 Business Use Cases:

• File servers

• Office NAS systems

• Backup repositories

• Surveillance storage

🏢 RAID 10 – Enterprise Performance + Redundancy

🔹 Working Principle:

• Combines RAID 1 (mirroring) + RAID 0 (striping)

• Requires minimum 4 disks

🔹 Technical Characteristics:

• Mirrored pairs with striping across them

• High fault tolerance

• Excellent IOPS performance

✅ Advantages:

• Very high read/write speed

• Strong data protection

• Faster rebuild compared to RAID 5

• Supports multiple disk failures (if in different mirrors)

❌ Disadvantages:

• 50% storage efficiency

• Higher cost

• Requires more disks

💼 Business Use Cases:

• Databases (SQL, ERP systems)

• Virtual machines (VMware, Hyper-V)

• High-traffic applications

• Enterprise NAS and servers

📊 RAID Level Comparison (Detailed)

🧠 Advanced RAID Considerations for Businesses

🔹 Rebuild Time:

• RAID 5 rebuild can take hours/days

• RAID 10 rebuild is faster

🔹 Disk Type Matters:

• Use NAS-grade HDDs (WD Red, Seagate IronWolf)

• SSD improves RAID performance

🔹 Hot Spare Drives:

• Automatically replace failed drives

• Reduces downtime

🔹 RAID Controller:

• Hardware RAID (better performance)

• Software RAID (cost-effective)

🏢 RAID in NAS Storage (Business Implementation)

Modern NAS systems support multiple RAID levels and offer:

Key NAS Features:

• Centralized storage

• Multi-user access

• Remote access (cloud integration)

• Automated backups

• Data encryption

• Snapshot recovery

Ideal for:

• SMEs and enterprises

• Retail and POS systems

• Educational institutions

• Healthcare data storage

🌟 Why RAID is Critical for Business Continuity

• Prevents unexpected data loss

• Minimizes downtime

• Ensures operational continuity

• Protects business reputation

• Enables scalable growth

📍 Buy RAID-Enabled NAS Storage – Dealer in Chennai, Tamil Nadu

Looking for reliable NAS storage solutions with RAID configuration?

Supreme Computers – 31 Years of Trust & Technology

We offer:

• Synology NAS solutions

• QNAP business storage

• WD NAS systems

• RAID configuration & setup

• Enterprise storage consultation

• Onsite installation and support

🌐 Website: supremeindia.com

Your trusted dealer in Chennai, Tamil Nadu for business storage solutions.

🔚 Conclusion (Expert Insight)

Choosing the right RAID level depends on your business priorities:

• For maximum speed → RAID 0

• For data safety → RAID 1

• For balanced performance → RAID 5

• For enterprise workloads → RAID 10

👉 For most organizations, RAID 5 and RAID 10 are the best choices, offering the right mix of performance, redundancy, and cost-efficiency.
