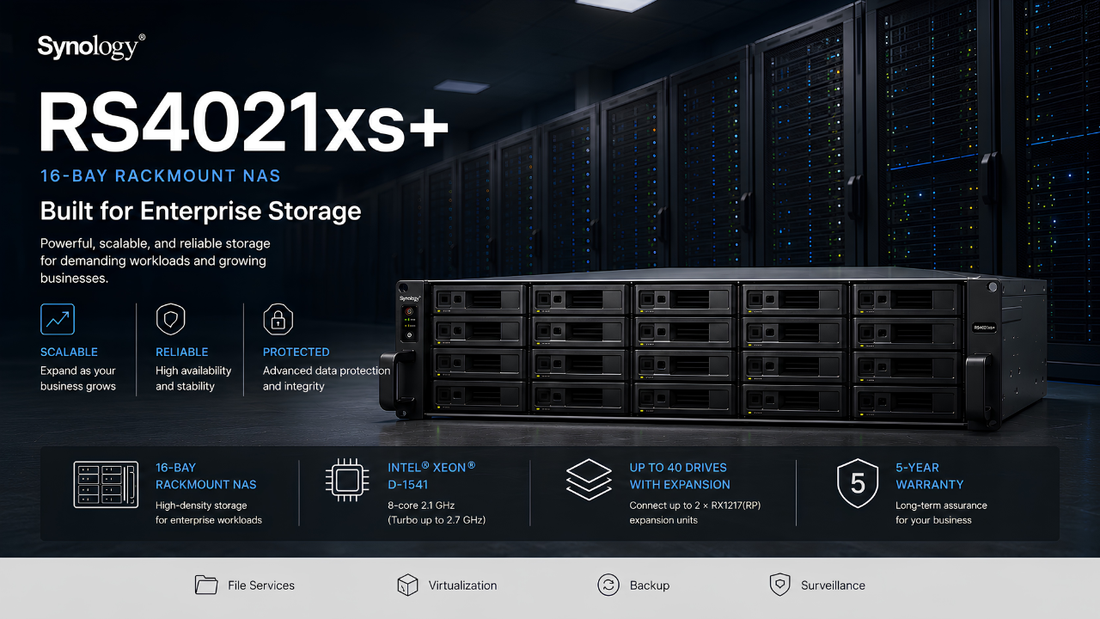

Synology RS4021xs+ at a Glance

The Synology RS4021xs+ is a high-density, rackmount network-attached storage system with 16 hot-swappable drive bays. It supports both 3.5-inch and 2.5-inch SATA HDDs and SSDs, allowing businesses to configure the system according to their capacity, performance and budget requirements.

For organisations planning long-term expansion, the system can scale up to 40 drives using compatible Synology RX1217 or RX1217RP expansion units.

Key Specifications of the Synology RS4021xs+

• Processor: Intel® Xeon® D-1541, 8-core, 2.1GHz with Turbo Boost up to 2.7GHz
• Memory: 16GB DDR4 ECC UDIMM, expandable up to 64GB
• Drive Bays: 16 × 3.5-inch or 2.5-inch SATA HDD/SSD bays
• Drive Design: Hot-swappable storage bays
• Maximum Expansion: Up to 40 drives with RX1217 or RX1217RP
• Network Connectivity: 4 × RJ-45 1GbE and 2 × RJ-45 10GbE LAN ports
• USB Ports: 2 × USB 3.2 Gen 1
• Expansion Slots: 2 × PCIe Gen3 x8
• File Systems: Btrfs and EXT4
• Operating System: Synology DiskStation Manager
• Cooling: 3 × 80mm cooling fans
• Power Supply: Redundant 800W or 550W PSU configuration
• Dimensions: 132.3 × 482 × 656.5mm
• Weight: 17.4kg
• Warranty: 5 years

Enterprise Performance with Intel Xeon Processing

At the centre of the Synology RS4021xs+ is the Intel Xeon D-1541 8-core processor, operating at 2.1GHz and reaching up to 2.7GHz through Turbo Boost.

This processor provides the computing capability required for simultaneous storage operations, multiple user access, large file transfers, backup jobs and other business-critical workloads. Its multi-core architecture helps the NAS manage concurrent tasks without compromising overall responsiveness.

ECC Memory for Greater Data Reliability

The RS4021xs+ includes 16GB of DDR4 ECC UDIMM memory. Error-Correcting Code memory is particularly valuable in enterprise storage environments because it helps detect and correct memory errors before they affect stored data or system stability.

Memory can be expanded up to 64GB, giving growing businesses the flexibility to increase system resources as workloads, users and storage services expand.

16-Bay Storage with Expansion up to 40 Drives

With 16 internal bays, the Synology RS4021xs+ provides substantial storage capacity within a rackmount form factor. The hot-swappable design allows compatible drives to be replaced without requiring the entire storage system to be powered down.

Businesses requiring additional capacity can connect supported RX1217 or RX1217RP expansion units, increasing the total drive count to as many as 40 drives.

This scalability makes the RS4021xs+ suitable for organisations that expect their storage needs to increase over time and want to avoid replacing the complete NAS infrastructure during future expansion.

Built-In 10GbE Connectivity for Faster Data Transfer

Network performance is one of the most important considerations when selecting an enterprise NAS. The Synology RS4021xs+ includes:

• 4 × RJ-45 1GbE LAN ports
• 2 × RJ-45 10GbE LAN ports

The integrated 10GbE ports support faster transfer speeds for large datasets, media files, backup operations and environments with multiple simultaneous users. The additional 1GbE ports provide flexibility for network segmentation, redundancy and different deployment requirements.

PCIe Expansion for Future Business Requirements

The RS4021xs+ features two PCIe Gen3 x8 expansion slots. These slots provide additional flexibility for compatible upgrades and allow businesses to adapt the NAS according to changing network and storage requirements.

This expandability helps protect the organisation’s investment by providing room for future infrastructure development.

Btrfs and EXT4 File-System Support

The Synology RS4021xs+ supports both Btrfs and EXT4 file systems. Btrfs is designed for modern storage environments that require enhanced data integrity, snapshots and efficient recovery capabilities.

EXT4 provides a stable and widely used file-system option. Businesses can select an appropriate configuration based on their workload, compatibility and data-management requirements.

Synology DSM for Centralised Storage Management

The RS4021xs+ runs on Synology DiskStation Manager, commonly known as DSM. This operating system provides a central platform for configuring storage, managing users, controlling permissions, monitoring system health and administering connected services.

Its centralised management approach helps IT teams organise business data and maintain greater control over the company’s storage infrastructure.

Redundant Power for Improved Business Continuity

Enterprise storage systems must remain available during important business operations. The Synology RS4021xs+ supports a redundant 800W or 550W power supply configuration, depending on the deployment.

Redundant power supplies help reduce the risk of service interruption caused by a single PSU failure. The system also includes three 80mm cooling fans to help maintain suitable internal operating temperatures.

Who Should Choose the Synology RS4021xs+?

The Synology RS4021xs+ is particularly suitable for:

• Medium and large enterprises with rapidly growing data
• Businesses requiring centralised file storage and sharing
• Organisations managing large-scale backup workloads
• IT environments requiring high-speed 10GbE connectivity
• Companies planning future storage expansion
• Data-intensive departments and professional workgroups
• Businesses requiring redundant power and enterprise reliability
• Organisations deploying virtualisation or surveillance storage

Major Advantages of the Synology RS4021xs+

• High-density 16-bay rackmount design
• Expandable up to 40 drives
• Intel Xeon 8-core processing performance
• ECC memory expandable up to 64GB
• Built-in dual 10GbE connectivity
• Four additional 1GbE network ports
• Two PCIe Gen3 x8 expansion slots
• Btrfs and EXT4 file-system support
• Redundant power supply design
• Five-year warranty coverage

Important Deployment Considerations

Before purchasing the RS4021xs+, businesses should calculate their required storage capacity, drive configuration, network infrastructure and expected workload.

The system weighs 17.4kg without drives and has a depth of 656.5mm, so rack depth, ventilation and physical installation requirements should be checked in advance. Businesses planning to utilise the 10GbE ports should also ensure that their switches, cabling and connected devices support 10GbE networking.

Final Verdict: Is the Synology RS4021xs+ Built for Enterprise Growth?

Yes. The Synology RS4021xs+ 16-Bay Rackmount NAS provides a strong combination of processing performance, high-density storage, ECC memory, built-in 10GbE networking and long-term expandability.

Its ability to scale from 16 internal drives to a maximum of 40 drives makes it particularly valuable for businesses expecting continuous data growth. Redundant power, DSM management, Btrfs support and a five-year warranty further strengthen its position as an enterprise storage solution.

For organisations looking to centralise business data, improve storage scalability and build a more reliable infrastructure, the Synology RS4021xs+ is a capable long-term investment.
