- 4 CH, 1SATA
- Supports AHD/TVI/CVI/CVBS /IP Cameras
- Supports AHD/TVI/CVI Cameras upto 8MP
- Supports H.265+/H.265/H.264+/H.264
- Supports Smart Playback & Analytics
- Supports 2 extra IP ch
- Supports 3G/4G Wi-Fi
- Google drive & Dropbox Cloud Storage
- Supports video quality detection (VQD).

Dlink DVR-F2104-M5 4CH, 1 SATA H.265+ DVR
₹6,689.00
Check if the product is available for delivery to your location
Dlink DVR-F2104-M5 4CH, 1 SATA H.265+ DVR.
Technical Specifications
Brand | Dlink |
Model No | DVR-F2104-M5 |
Model Name | 4CH, 1 SATA H.265+ DVR |
Video Input | 4ch BNC interface (1.0Vp-p, 75 ?) |
TVI / CVI /AHD | TVI /AHD: 8MP,5MP,4MP,1080P, 720P / CVI: 4MP,1080P, 720P |
IPC | Up to 8ch 8MP |
Audio Input | 4-ch, RCA (2.0 Vp-p, 1 K?) |
Two way Talk | 1-ch, multiplex with Audio Input (RCA) |
HDMI | 1ch, resolution: 4K (3840×2160)/30Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
VGA | 1ch, resolution: 1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
CVBS output | 1-ch, PAL:704x576, NTSC:704x480 |
Audio Output | 1-ch, RCA (Linear, 1k?) |
Compression | H.264/H.264+/ H.265/H.265+ |
Resolution | 8MP@7fps,8MP lite@15fps,5MP@12fps,4MP@15fps,1080P/720P/960H/D1@25fps?P?/30fps?N? |
Frame Rate(fps) | 1fps-25fps (PAL) / 30fps (NTSC) |
Video Bit Rate | 11Kbps~ 10Mbps |
Record Mode | Manual, Schedule, Alarm |
Audio Compression | G.711a |
Audio Bit Rate | 64Kbps |
Playback Mode | Smart Playback/Normal/Time Division/ Label/ Event/ Picture Playback |
Playback Rate | 4CH 8MP lite/5MP/4MP/1080P Playback |
Backup Mode | USB Device/Network |
Smart Detection for Analog | 4CH line crossing detection, area Intrusion |
Smart Playback for Analog | line crossing detection, area Intrusion |
Cloud Storage/Upgrade | Support |
Ethernet | 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Network Function | HTTPs,HTTP,TCP/IP,IPv4,UPnP,Onvif2.6,RTSP,RTCP,UDP,SMTP,SNMP,Multicast,IGMP,NTP,DHCP,DNS,DDNS, FTP, P2P |
Smart Phone | IOS (iPhone, iPad), Android (Phone, Pad) |
SATA | 1 HDD |
Capacity | Up to 10TB capacity for each HDD |
Serial Interface | RS-485 |
USB Interface | 2 × USB |
Power Supply | DC12V,1.5A |
Power Consumption | ?15W (without HDD) |
Dimension | 250 x 230 x 45mm |
Weight | 1.5kg |
Warranty | 5 Years Warranty |
Related Products on brand



Dlink DCS-F5712-L1 2MP Fixed IP Bullet Camera
Dlink DCS-F5712-L1 2MP Fixed IP Bullet Camera.



Dlink NFP-0WHI11 Face Plate - Single Port Square Type
Dlink NFP-0WHI11 Face Plate - Single Port Square Type.



Dlink DES-1008C 8-Port 10/100 Mbps Unmanaged Switch
Dlink Unmanaged 10/100 Mbps switch for SOHO and small and medium businesses.8 high-speed Fast Ethernet ports Innovative D-Link Green energy saving features Compact design for convenient placement Fanless design for silent operation.

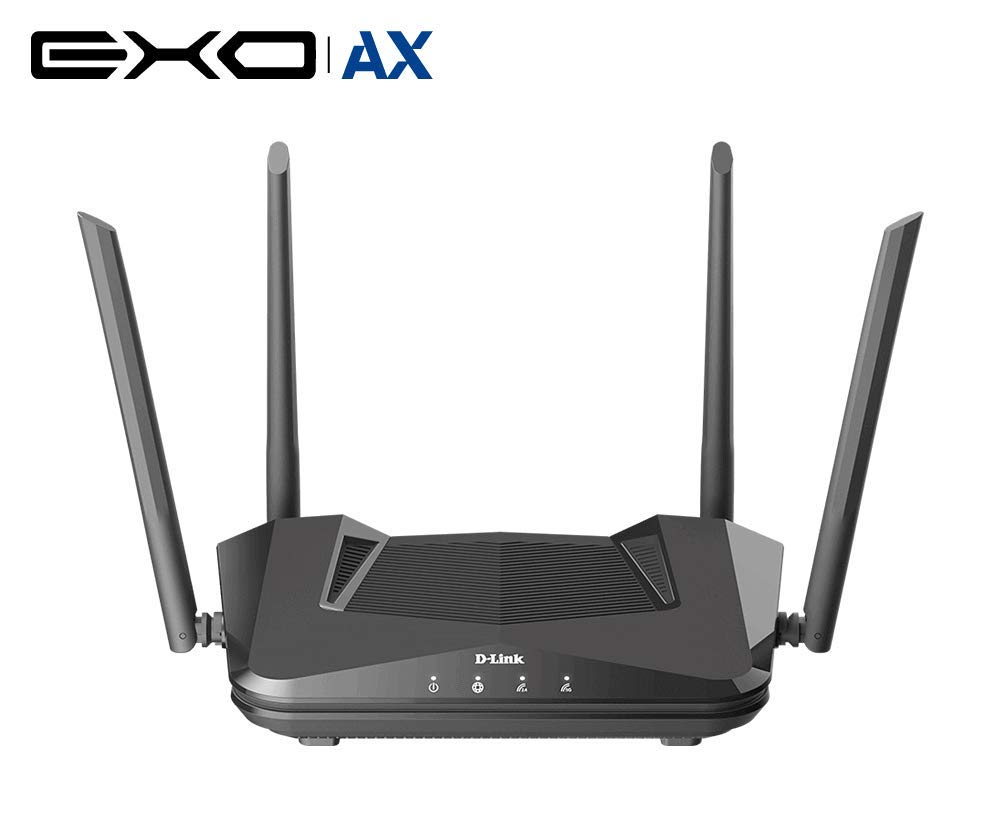

Dlink DIR-X1560 EXO AX AX1500 Wi-Fi 6 Router
