- 1 megapixel high performance CMOS
- Analog HD output, up to 720p resolution
- Day/Night switch
- DNR
- Smart IR
- Up to 20 m IR distance
- Switchable TVI/AHD/CVI/CVBS
- IP66

Hikvision DS-2CE5AC0T-IRPF HD 720P Indoor IR Dome Camera
₹1,165.00
Check if the product is available for delivery to your location
Hikvision DS-2CE5AC0T-IRPF HD 720p IR Turret Camera.
Technical Specifications
Brand | Hikvision |
Model No | DS-2CE5AC0T-IRPF |
Model Name | HD 720P Indoor IR Dome Camera |
Min. illumination | 0.1 Lux@(F1.2,AGC ON),0 Lux with IR |
Shutter Time | 1/25 (1/30) s to 1/50,000 s |
Lens | 2.8 mm |
Angle of view | 92° |
Lens Mount | M12 |
Day & Night | ICR |
Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
Synchronization | Internal synchronization |
Video Frame Rate | 720p@25fps/720p@30fps |
Switch Button | TVI/AHD/CVI/CVBS |
HD Video Output | 1 Analog HD output |
S/N Ratio | >62dB |
Effective Pixels | 1296 (H) × 732 (V) |
Image Sensor | 1 MP CMOS image sensor |
Appearance | Turret |
Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
Power Supply | 12 V DC±15% |
Power Consumption | Max. 4 W |
IR Range | Up to 20 m |
Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
Dimensions | ? 89.9 mm × 70.1 mm (3.54" × 2.76") |
Weight | 250 g (0.55 lb.) |
Related Products on brand



Hikvision DS-2CE1AH0T-ITPF 5MP EXIR Bullet Camera
Hikvision DS-2CE1AH0T-ITPF 5 MP Bullet Camera Smart IR, DNR, OSD Menu (Up the Coax) EXIR, 20m IR, Outdoor EXIR Eyeball IP66, 3.6mm lens.



Hikvision iDS-7216HQHI-M2/S 2MP 8CH Acusense Turbo HD Metal DVR
- Deep learning-based analysis or facial detection.
- H.265 Pro+/H.265 Pro/H.265 video compression.
- HDTVI/AHD/CVI/CVBS/IP video inputs.
- Up to 12/24-ch IP camera inputs (up to 6 MP).
- Max. 800 m for 1080p and 1,200 m for 720p HDTVI signal transmission.
- Up to 10 TB capacity per HDD.



Hikvision DS-2CE1AD0T-IP/ECO (2MP) Super ECO Mini Night Vision Bullet Camera
Hikvision DS-2CE1AD0T-IP\ECO 2 MP Lite IR Bullet Camera.

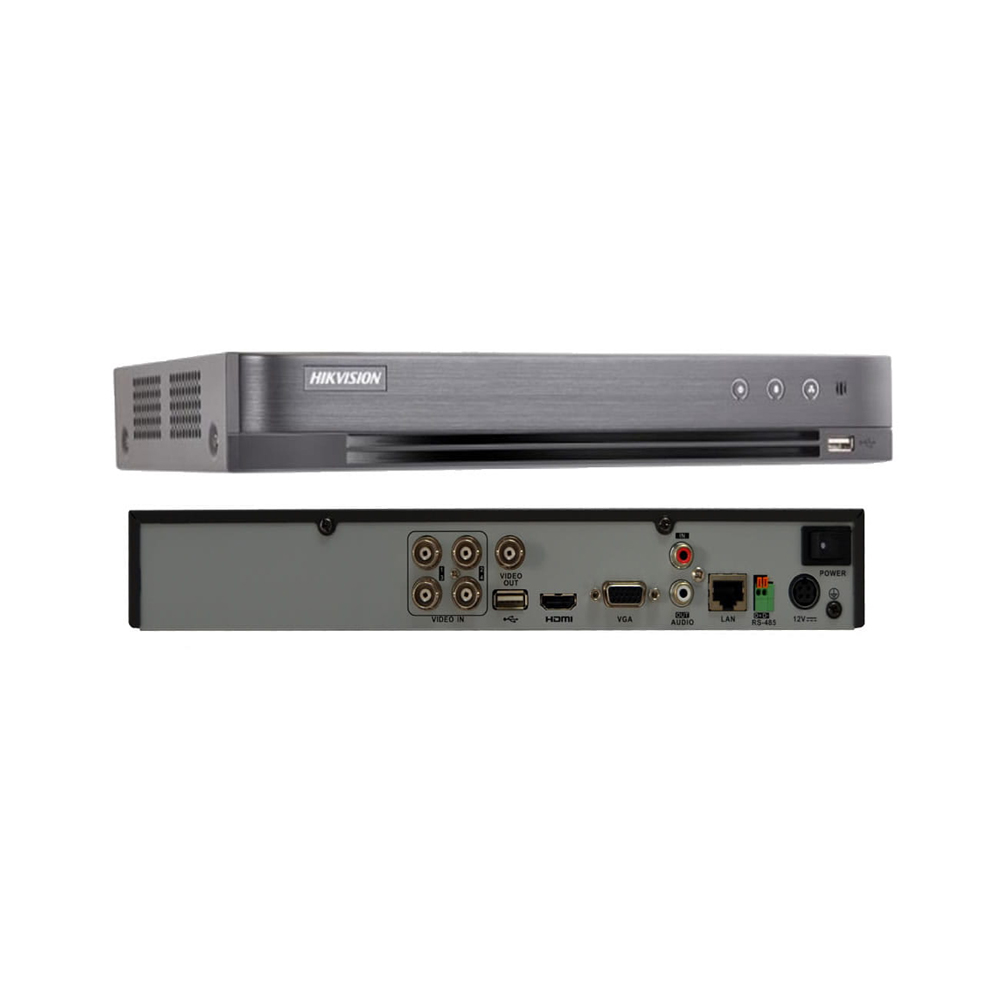

Hikvision DS-7B04HGHI-F1 1MP 4 channel Turbo HD Metal DVR
Video Input and Transmission, Compression and Recording, Video Output, Storage and Playback, Smart Function, Network & Ethernet Access.



Hikvision DS-7A16HQHI-K1 2MP 16CH Turbo HD Plastic DVR
Video Input and Transmission, Compression and Recording, Video Output, Smart Function, Network & Ethernet Access.



Hikvision DS-2CD1323G0E-I 2MP IP Plastic Dome Camera
Hikvision Network Camera DS-2CD1323G0E-I 2 MP IR Fixed Network Turret Camera.



Hikvision IDS-7216HQHI-M1/S 2MP\4MPlite 16-ch 1HDD AcuSense H.265Pro+ DVR
- Deep learning-based behavior analysis or facial detection.
- H.265 Pro+/H.265 Pro/H.265 video compression.
- HDTVI/AHD/CVI/CVBS/IP video inputs.
- Up to 6/12/24-ch IP camera inputs (up to 6 MP).
- Max. 800 m for 1080p and 1,200 m for 720p HDTVI signal transmission.
- Up to 10 TB capacity per HDD.



Hikvision DS-2CD204WFWD-I 4.0MP IP Bullet Camera
Hikvision DS-2CD204WFWD-I 4.0MP IP Bullet Camera.



Hikvision DS-2CD202WF-I 2MP IP Metal Bullet Camera Lens 4MM
Hikvision DS-2CD202WF-I(D)(W) 2 MP IR Fixed Network Bullet Camera.



Hikvision DS-7A08HQHI-K1 2MP 8CH Turbo HD Plastic DVR
Video Input and Transmission, Compression and Recording, Video Output, Storage and Playback, Smart Function, Network & Ethernet Access.



Hikvision DS-7A08HGHI-F1/ECO - Eco Series 8 Channel DVR
Connectable to HD-TVI, AHD, network and analog cameras Simultaneous HDMI and VGA outputs at up to 1080p resolution New GUI and support starting record with one key Smart playback to go through less effective information Customization of tags, searching and playing back by tags



Hikvision DS-7B04HUHI-K1 5MP 4CH Turbo HD Metal DVR
Video Input and Transmission, Compression and Recording, Video Output, Storage and Playback , Smart Function, Network & Ethernet Access.



Hikvision DS-3E0526P-E/M 24 Port Gigabit Unmanaged POE Switch
Hikvision 24 Port Gigabit Unmanaged POE Switch.



Hikvision DS-7P04NI-K1 4-ch 1HDD H.265+ NVR
Professional and Reliable, HD Input, HD Output, HD Storage, HD Transmission, Various Applications.

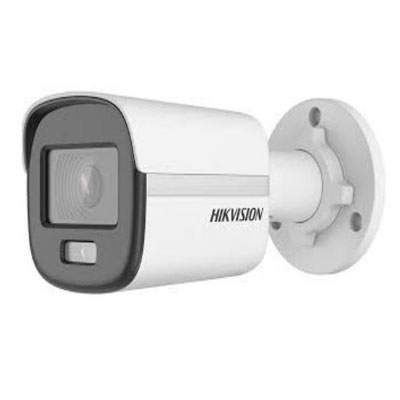

Hikvision DS-2CD1027G0-L ColorVu 4mm Camera
