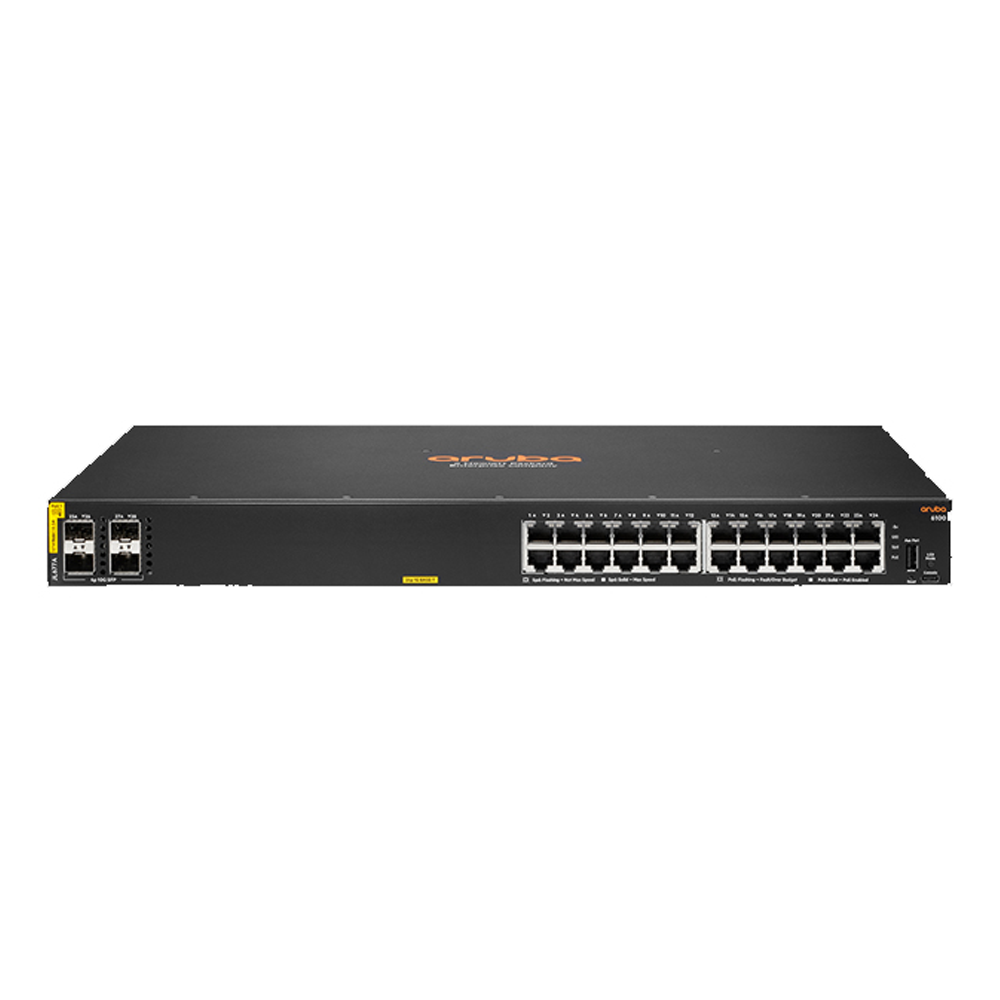

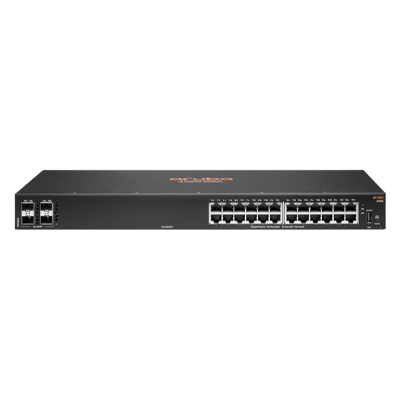

HPE Aruba JL678A 6100 24G 4SFP+ Managed Enterprise Switches
Check if the product is available for delivery to your location
- Simplify IT operations with next-gen Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
- Right size with 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 370W of Class 4 PoE.
- Silent deployment with compact and fanless 12 port PoE model.
- Flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
- Software defined ready with REST APIs.
- Layer 2 feature set with static routing and no switch software licensing required.
Entry Level Aruba CX Access Layer Switches
The Aruba CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 370W of Class 4 PoE.
Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
The Aruba CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
Deploy wireless access points and IoT devices with Aruba CX 6100 switch models that support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
The Aruba CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Manage via single pane of glass with Aruba Central across wired, wireless, and WAN.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Software-defined ready with REST APIs for fine-grained programmability of network tasks.
Technical Specifications
| Manufacturer | Aruba |
| Brand | Aruba |
| Model No | JL678A |
| Features | Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Mld Snooping, Lacp Support, Lldp Support, Port Based Access Control, Dhcp Client, Energy Efficient Ethernet, Management Information Base (mib), Network Access Control (nac), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Entitymib, Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 | 4 x 1/10Gbit LAN SFP+ | 1 x USB-C console | 1 x USB Type A |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az |
| Processor | 1 x ARM A9: 1.016 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Flash Memory | 16 GB eMMC |
| Form Factor (Hubs & Switches) | Rack-mount |
| Routing Protocol | IGMPv2, IGMPv3 |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| MAC Address Table Size | 8192 entries |
| Manageable | Yes |
| Device Type | Switch - 24 Ports - L3 - Managed - Stackable |
| Enclosure Type | Side To Side Airflow Rack-mountable 1u |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit Sfp+ |
| Performance | Switching capacity: 128 Gbps | Throughput: 95.2 Mpps | Latency (1 Gbps): 1.5 µs | Latency (10 Gbps): 1.8 µs |
| Capacity | Switched virtual interfaces (SVIs): 16 | ARP entries: 1024 | IPv4 routes (Unicast): 512 | IPv6 routes (Unicast): 512 | IGMP groups: 512 | MLD groups: 512 | IPv4 ACL entries (ingress): 256 | IPv6 ACL entries (ingress): 128 | MAC ACL entries (ingress): 256 |
| Latency | 1 Gbps: 1.5 Sec , 10 Gbps: 1.8 Sec |
| Differentiator | The Aruba CX 6100 Switch Series delivers entry level, reliable, and convenient Layer 2 wired access connectivity ideal for branch offices, mid-market enterprise, and SMBs. This model has 24x 10/100/1000BASE-T and 4x 1G/10G SFP ports. |
| Power consumption | Max Power (w/o PoE): 33W |
| Input voltage | 100-127 VAC / 200-240 VAC |
| Switching capacity | 128 Gbps |
| Throughput | 95.2 Mpps |
| Memory and processor | Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC |
| Power supply name | Internal |
| Power Supply Type | Internal |
| Connectivity | 24 x 10/100/1000 Base-T RJ-45 | 4 x 1/10Gbit LAN SFP+ | 1 x USB-C console | 1 x USB Type A |
| PoE capability | 370W, maximum, depending on model |
| Ventilation | Fan |
| Color | Black |
| Weight | 2.6 kg |
| Product Dimensions | 4.4 x 44.2 x 20.1 cm |
| Warranty | Limited Lifetime Warranty |
